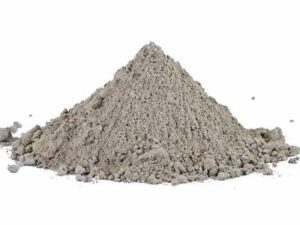

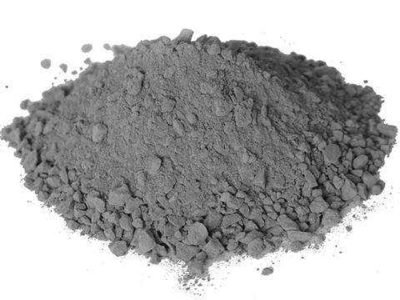

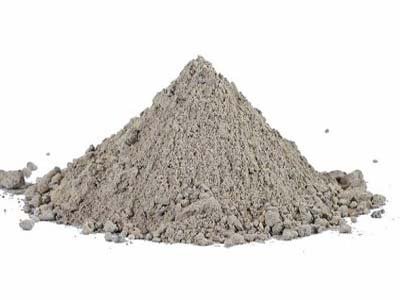

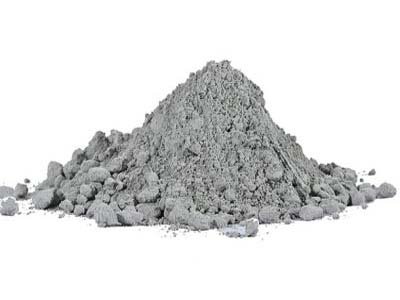

Steel Fiber Reinforced High Alumina Castable
| Item | Steel fiber reinforced high alumina castables | ||
| LX-FH85 | LX-FH75 | ||
| Chemical composition ( % ) | AlO₂ | 80 | 70 |
| Bulk Density (g/cm³) | 2.80 | 2.60 | |
| Cold crushing strength (MPa)≥ | 110℃×24h | 85 | 80 |
| 1100℃×3h | 85 | 80 | |
| (MPa)2Cold modules of rupture | 110℃×24h | 15 | 12 |
| 1100℃×3h | 15 | 12 | |
| Permanent linear change (%) | 1100℃×3h | ±0.4 | ±0.5 |
| Water addition (%) | 5.5-6.5 | 6.5-7.5 | |
| Application | Outlet,burner,kiln hood,cooler | ||

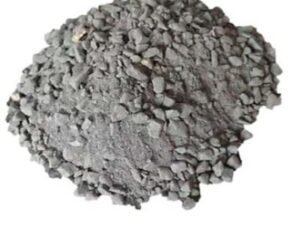

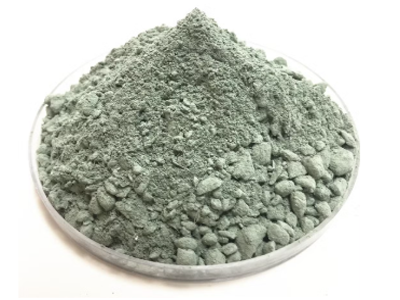

Alumina Chrome Castable
Features:
Selection of high-quality magnesia and chrome ore, raw materials and high-quality binders, additives, high temperature, good fluidity, heat shock stability.
Application:
Industrial furnaces for iron and steel, nonferrous metal smelting furnace, chemical and other industrial furnaces.
| Item | LXLGe-1 | LXLGe-2 | LXLGe-3 | LXLGe-4 | LXLGe-5 | LXLGe-6 | |
| Al₂O₃ (%) ≥ | 80 | 82 | 83 | 85 | 86 | 90 | |
| CaO(%) ≤ | 2.5 | 2.5 | 2.5 | 2.5 | / | / | |
| Cr₂O₃ (%)≥ | 10 | 10 | 3 | 5 | 5 | 3 | |
| Bulk Density (g/cm³)≥ | 110℃×24h | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 | 3.05 |
| 1500℃×3h | 2.90 | 2.95 | 2.95 | 2.95 | 2.95 | 3.00 | |
| Modules of Rupture (MPa)≥ | 110℃×24h | 8 | 8 | 9 | 9 | 10 | 13 |
| 1500℃×3h | 14 | 14 | 15 | 16 | 17 | 18 | |
| Permanent linear change (1500℃×3h,%) | 0~+0.5 | 0~+0.5 | 0～+0.5 | 0~+0.5 | 0~+0.5 | -0.1～+0.5 | |
| Max.working temperature (℃) | 1700 | 1700 | 1700 | 1700 | 1700 | 1750 | |
| Amount of water (%) | 5-7 | 5-7 | 5-6 | 5-6 | 5-6 | / | |

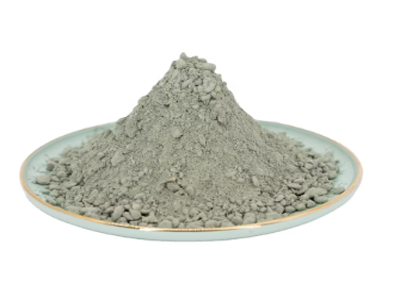

Chrome Corundum Castable
Chromium corundum refractory castable is a castable refractory material with AL2O3 and Cr2O3 as the main components. It is a neutral refractory castable. It is composed of coarse aggregate, fine aggregate, and powder in a certain proportion, and a certain amount of binder and additives are added. The material is suitable for pouring construction and molding. During construction, add binder, coagulant and appropriate amount of water, and stir and mix to make a castable with good fluidity. When used, the ratio of coarse, medium and fine aggregates and powders to the binding agent can be adjusted as needed. The binding agents used are pure calcium aluminate cement and phosphoric acid (or aluminum dihydrogen phosphate).
Features:
Chrome corundum refractory castable has the characteristics of erosion resistance, corrosion resistance, high load softening temperature (1700℃), easy construction, good masonry density and low cost.
Application:
It can be used in metallurgy, petroleum, chemical industry, building materials, machinery and other industries. Kilns and thermal equipment.
| Items | CrG1 | CrG2 | |
| Al2O3 Cr2O3 ≥ | 92 | 89 | |
| Bulk Density g/cm3 ≥ | 110℃ x 24h | 3.1 | 3.0 |
| Module of Rupture Mpa ≥ | 110℃ x 24h | 7 | 7 |
| Cold Crushing Strength Mpa ≥ | 1550℃ x 3h | 12 | 12 |
| 110℃ x 24h | 40 | 40 | |
| Reheating Linear Change % ≤ | 1550℃ x 3h | 100 | 100 |
| 1550℃ x 3h | +_0.5 | +_0.5 | |

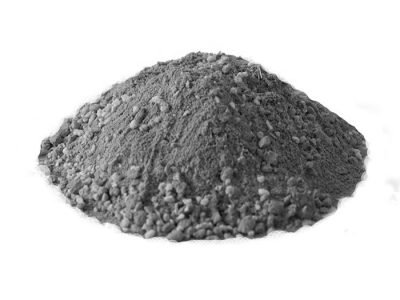

Corundum Mullite Castable
Feature:
Corundum mullite castable is made from high quality corundum and mullite with micro-powder and additive, The advantage of Corundum mullite castable is good thermal shock resistance, low creep rate, low expansion and good performance of chemical attack resistance.
Application:
widely used for outlet, burner lance, kiln hood and tertiary air duct and grate cooler of cement rotary kilns.
| Item | Corundum Mullite castable | |||||
| LX-18S | LX-80MC | LX-70MC | ||||
| Chemical composition (%)≥ | Al₂O₃+SiC | 90 | 80 | 70 | ||
| Bulk density (g/cm³) | 110℃×24h | 3.00 | 2.90 | 2.75 | ||
| Cold crushing strength (MPa) | 110℃×24h | 110 | 100 | 90 | ||
| 1100℃×3h | 120 | 110 | 100 | |||
| Cold modules of rupture (MPa)≥ | 110℃×24 | 15 | 12 | 10 | ||
| 1100℃×3h | 18 | 14 | 12 | |||
| Permanent linear change | 1100℃×3h | ±0.3 | ±0.3 | ±0.3 | ||
| 1500℃x3h | ±0.5 | ≠0 | ±05 | |||
| Maximum Service temp (℃)≥ | 1700 | 1600 | 550 | |||
| Water addition (%) | 4.5-5.5 | 5.0-5.5 | 5.5-6.5 | |||
| Use part | Kiln mouth | coal injection pipe | ||||

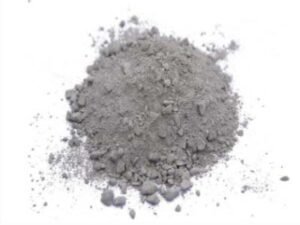

Corundum Spinel and Corundum Castable
Features:
Selection of high quality raw materials and high-quality high-grade synthetic binders,additives, use of high temperature, fluidity, Thermal shock stability, strong resistance to slag erosion.
Application:
for RH, VOD, AOD, LF Refining furnace and other iron and steel, nonferrous metallurgical smelter.
| Item | Corundum-spinel castables | Corundum castable | |
| Al₂O₃ (%) ≥ | 80 | 90 | |
| MgO(%) ≥ | 8 | / | |
| Bulk Density (g/cm³) ≥ | 2.9 | 2.9 | |
Cold crushing strength (MPa)≥ | 110℃×24h | 30 | 60 |
| 1600℃×3h | 60 | 70 | |
Modules of Rupture (MPa)≥ | 110℃×24h | 5 | 6 |
| 1500℃×3h | 7 | 10 | |
| Permanent linear change (1500℃,%) | 0~+1.0 | ±0.5 | |
| Working Temperature (℃) | 1700 | 1700 | |

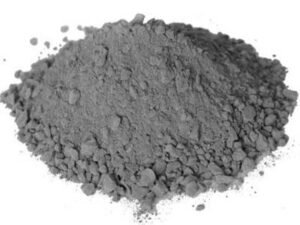

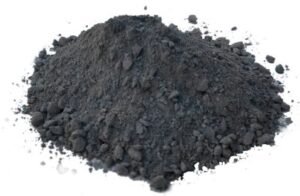

Corrosion-resistant corundum silicon-carbide castable
Features:
Selection of high quality raw materials and high-quality binders, additives, use of high temperature, fluidity, heat shock Good stability and corrosion resistance.
Application:
For iron and steel, nonferrous metals, electric power, chemical and other industrial furnaces.
| Item | ||
| Maximum temperature (℃) | 1500 | |
| Linear change after firing (1400℃×3h,%) | -0.3~+0.2 | |
| Cold crushing strength (MPa) ≥ | 110℃×24h | 100 |
| 1300℃×3h | 120 | |
| Cold Crushing Strength (cm³) ≤ | 7 | |
| Thermal shock resistance(700 ℃,water cooling)times ≥ | 35 | |
| SiC(%)≥ | 85 | |
| Bulk Density (g/cm³) ≥ | 2.7 | |
What is the Price of Castable Price?
The main factors affecting the price include: quantity and type. Castables are key components for building kilns. Lianxin team will provide different pricing plans according to the different needs of customers. The price of castable varies depending on the quantity and model selected. Customers who order large quantities of the same model can enjoy greater discounts.
About Lianxin:
The company has more than 20 patented technologies, more than 20 corporate honors, and international certifications such as ISO. With an annual output of 300,000 tons, the company is a leader in China’s refractory industry. As a manufacturer, we will provide you with factory direct prices. With more than 20 years of experience and a team of more than 200 professionals, we are committed to helping you find a solution that suits your needs.
Why Choose Us?
- About delivery time: Standard size bricks can be delivered immediately.
- Regarding customized castables, we have rich experience, short production cycle and fast delivery time.
- In addition, we can also provide kiln material solutions and a series of technical guidance for construction according to the specific needs of customers.
- Lianxin castables are your solution!
- With over 20 years of experience and a team of over 200 professionals, we are committed to helping you find the solution that’s right for you.
