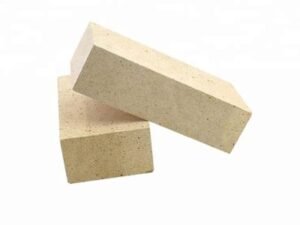

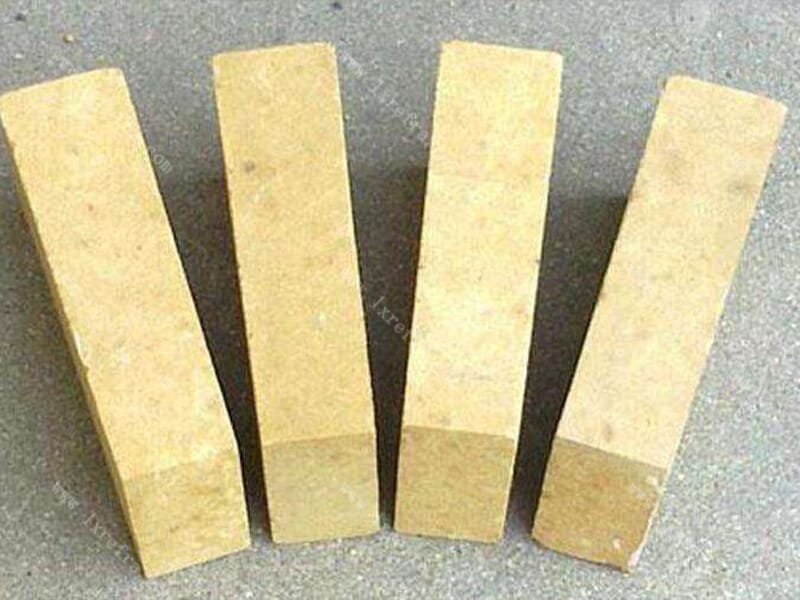

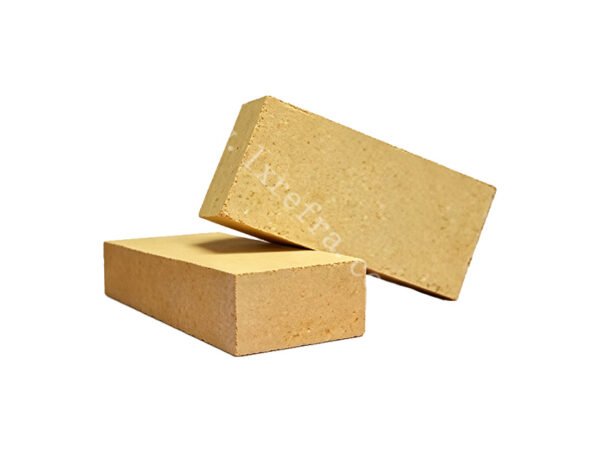

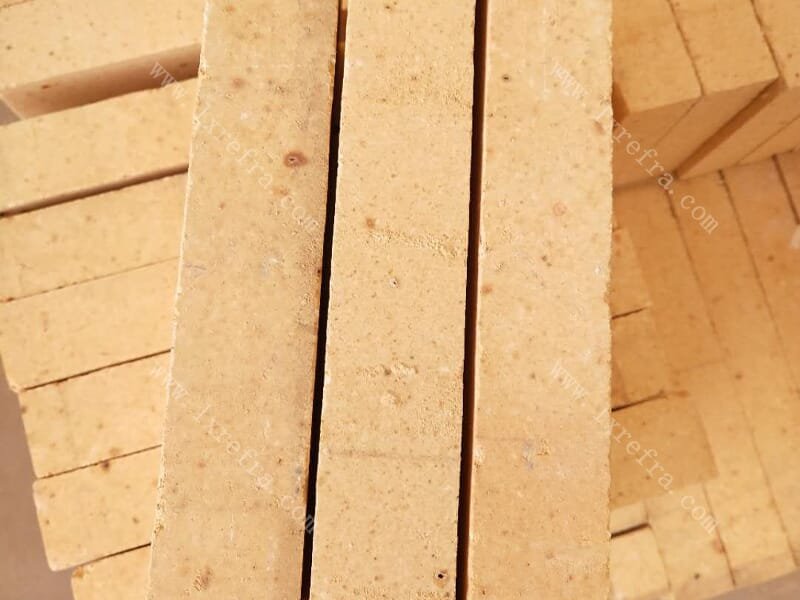

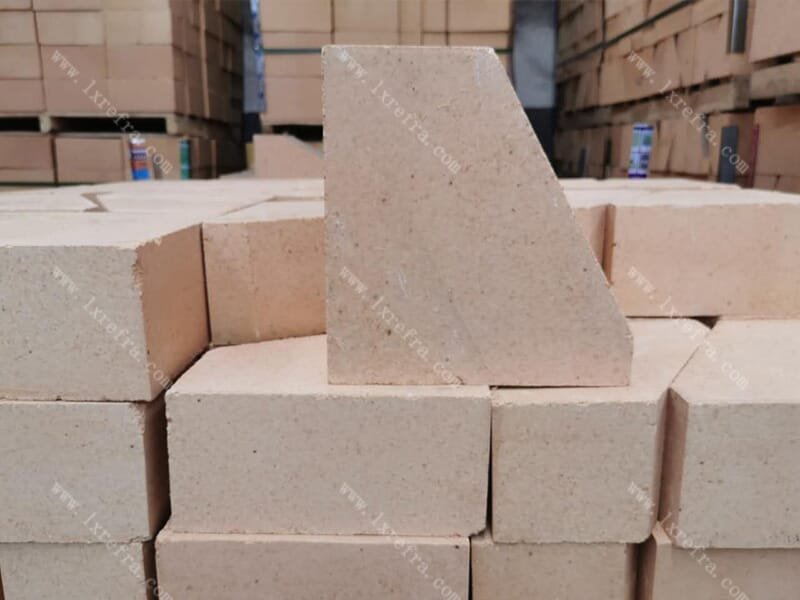

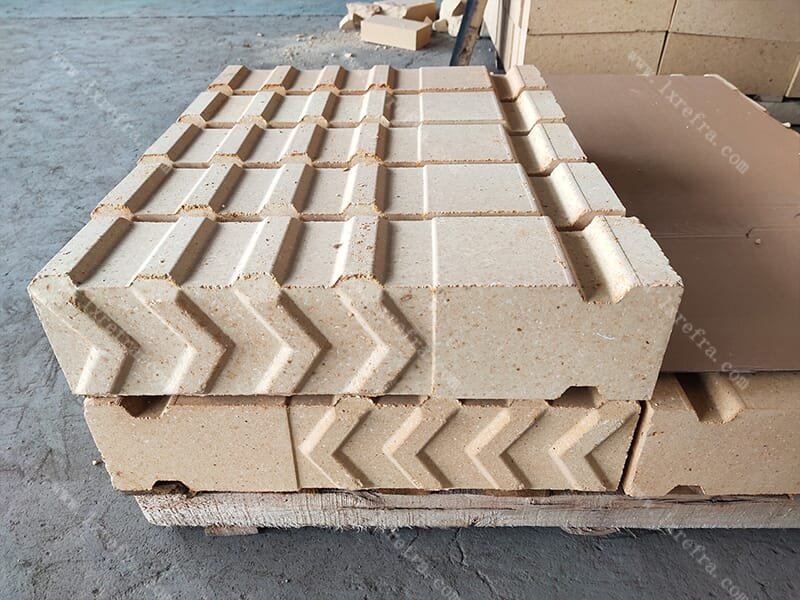

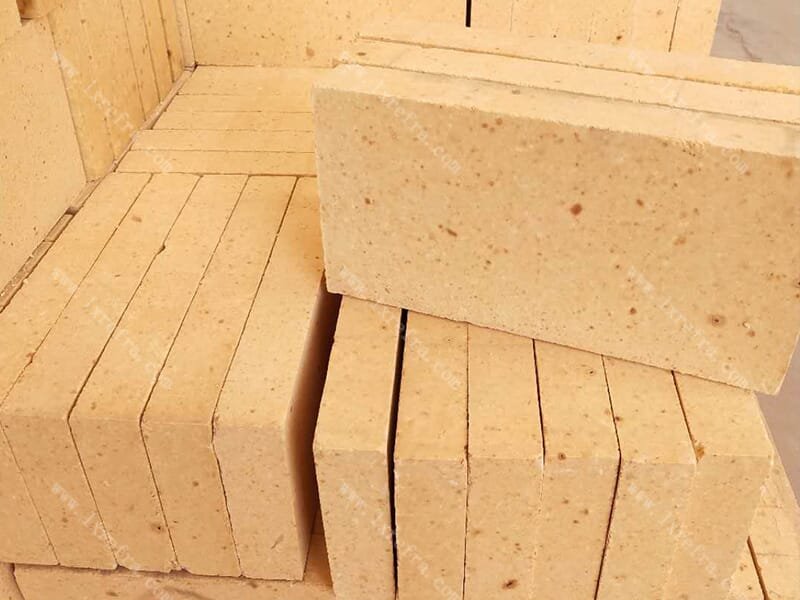

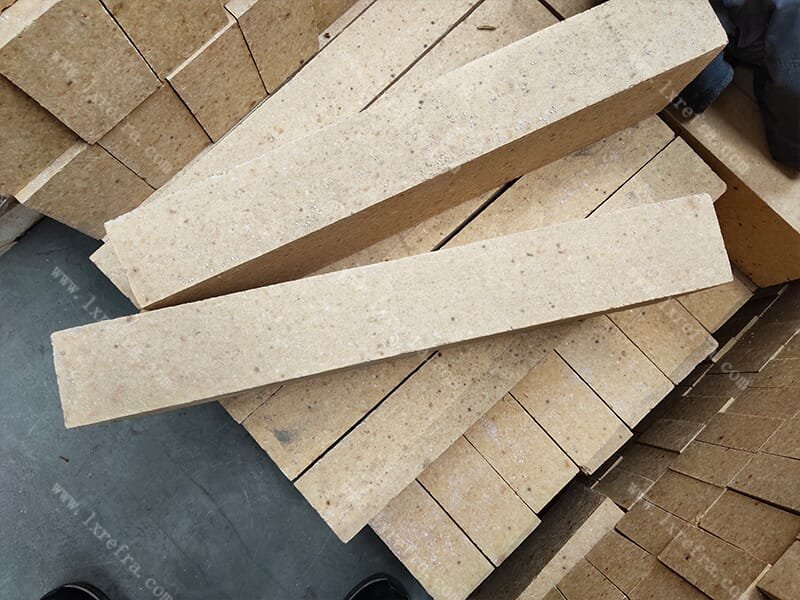

High Alumina Brick

High alumina (Al₂O₃) is the main component of the refractory.

High alumina refractories have a high alumina content, which can be divided into several grades according to different content. Generally speaking, alumina content between 48% and 75% belongs to high aluminum refractory. Its main raw material is high bauxite or industrial alumina.

It has a high refractoriness, usually between 1750℃ and 1790℃, which makes it able to withstand high temperature environments, such as the transition zone and firing zone of cement rotary kilns, the lining of ceramic kilns and other high temperature parts play a key role.

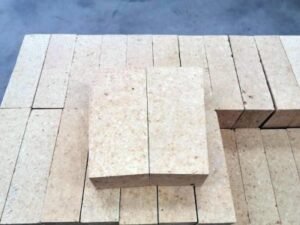

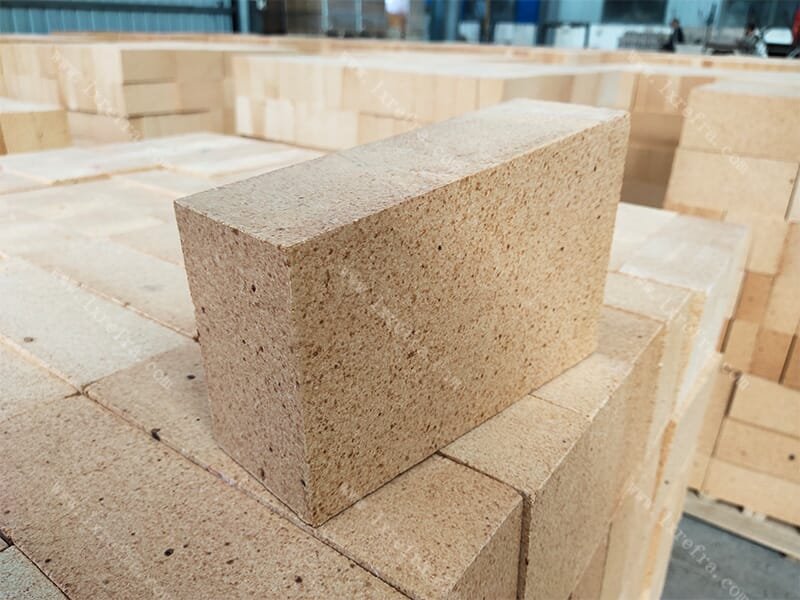

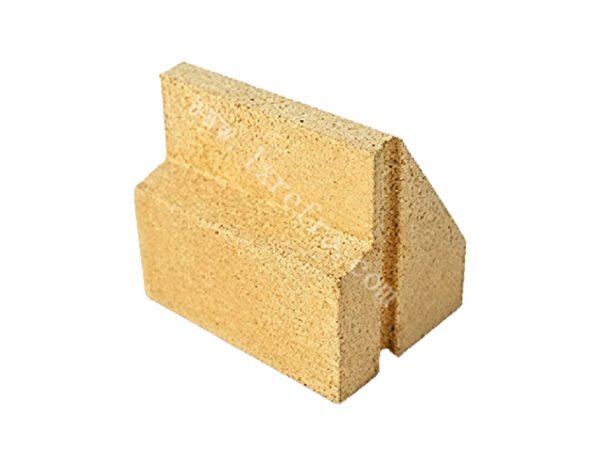

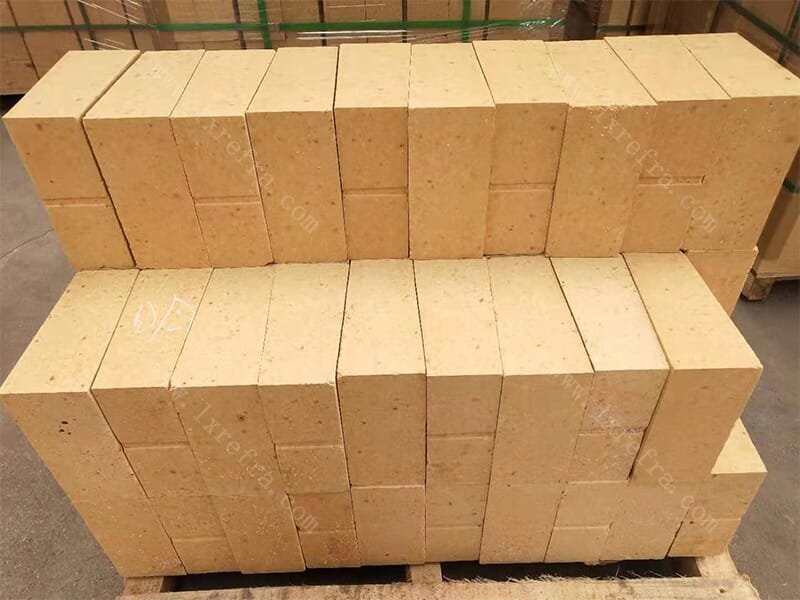

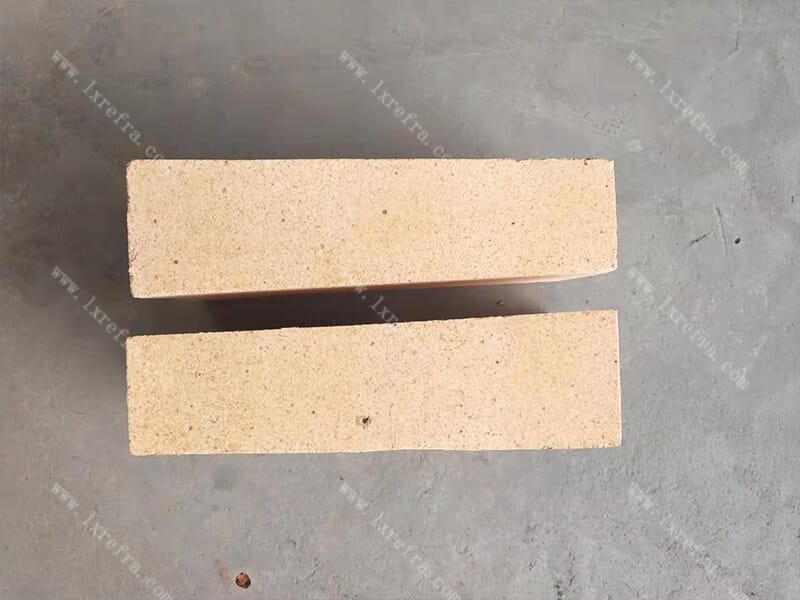

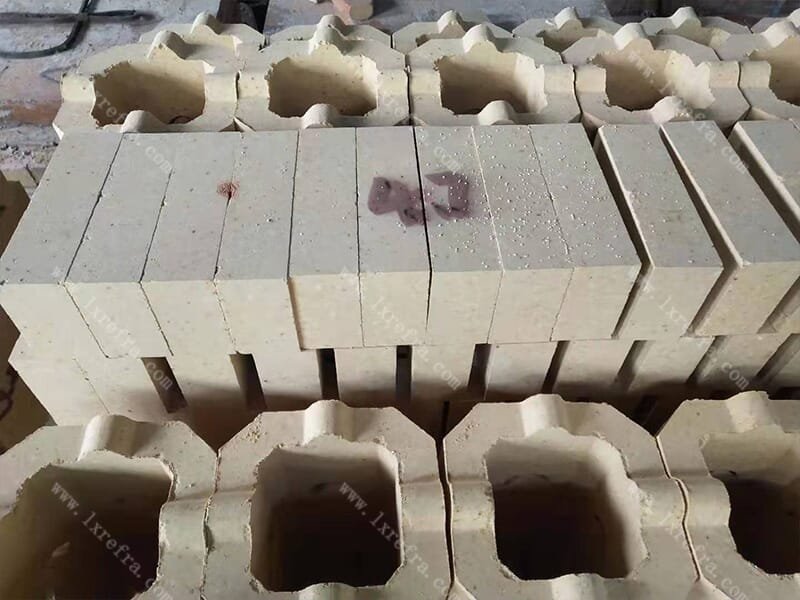

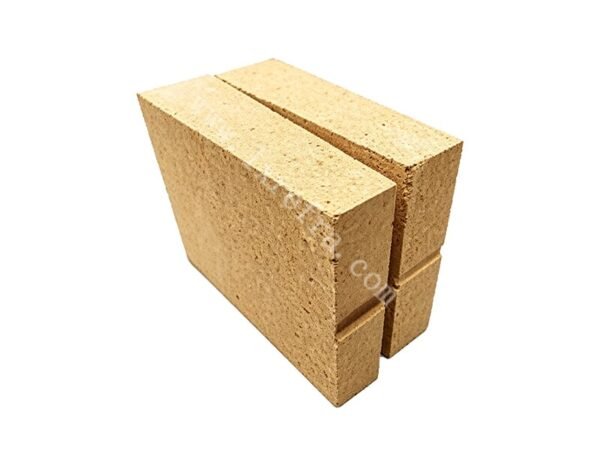

High Alumina Brick

Features of High Alumina Brick:

High alumina brick is a kind of neutral refractory material, which is formed and calcined by bauxite or other raw materials with high alumina content. It has high thermal stability and strong corrosion resistance.

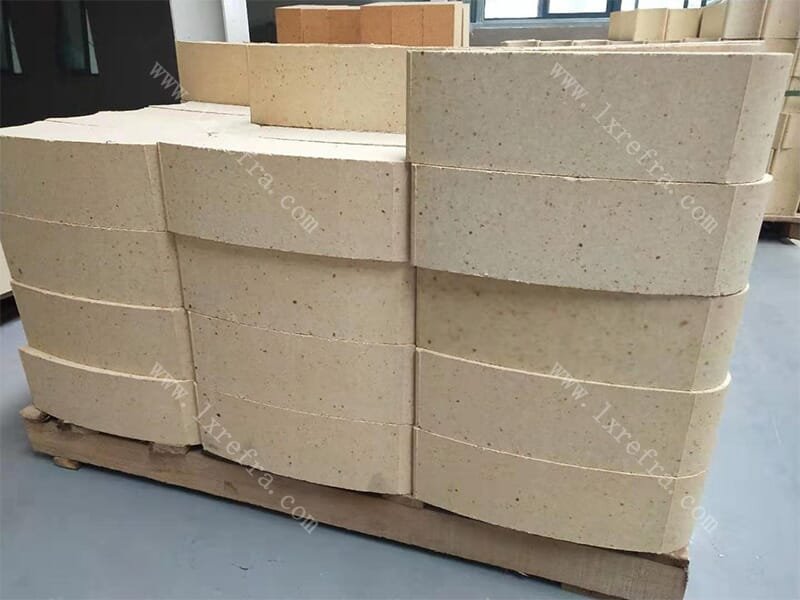

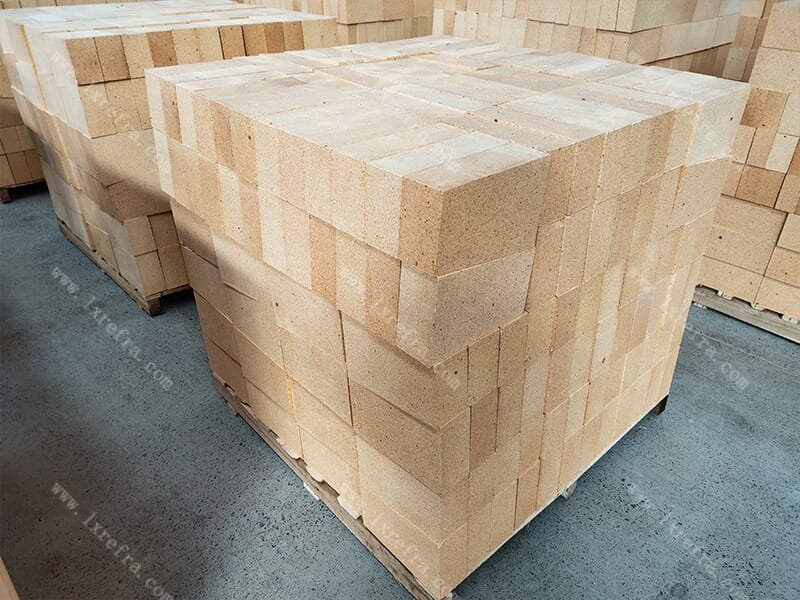

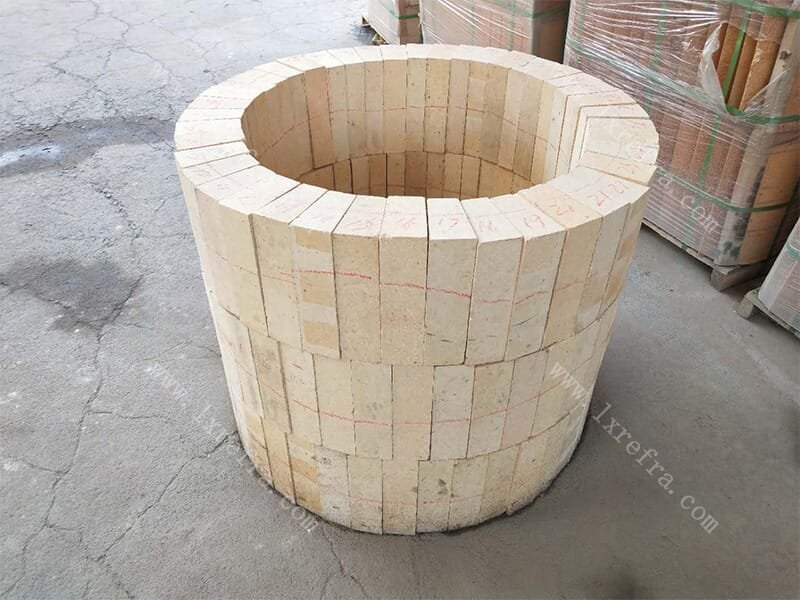

High Alumina Brick

LX-LZ-75 LX-LZ-65 LX-LZ-55 LX-GZ-65 LX-GZ-55 LX-RL-65 LX-RL-55
Physical Property:
Bulk Density(g/cm3) 2.65 2.6 2.35
Cold Crushing Strength(MPa) 50 45 40 58 49 49 44
Refractoriness Under Load(T0.6℃) 1520 1500 1450 1500 1480 1500 1470
Apparent     Porosity(%) 23 23 22 19 19 24 24
Refractoriness (℃) 1790 1790 1770 1790 1770 1780 1760
Reheat linear change%(1500℃,2h)   +0.1-0.4 +0.1-0.4 +0.1-0.4 0 -0.2 +0.1-0.4 +0.1-0.4
Chemical Analysis(%)
Al2O3 75 65 55 65 55 65 55
Fe2O3 2.0 2.0
Note:All data are average values obtained at samples for laboratory purposes.

Application of High Alumina Brick:

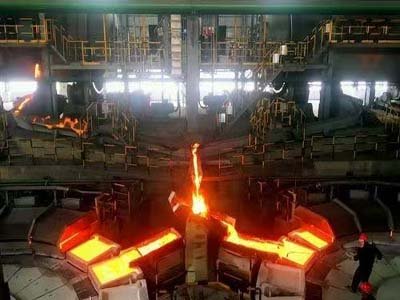

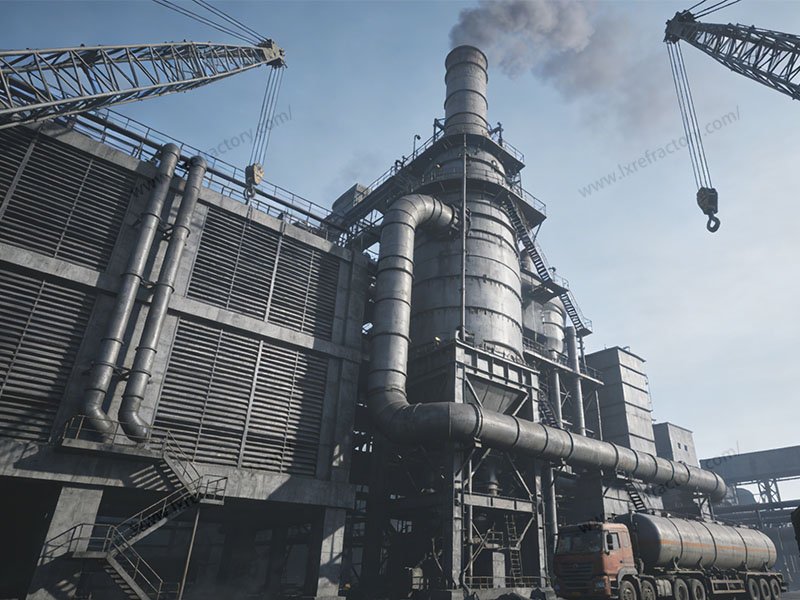

  • blast furnace

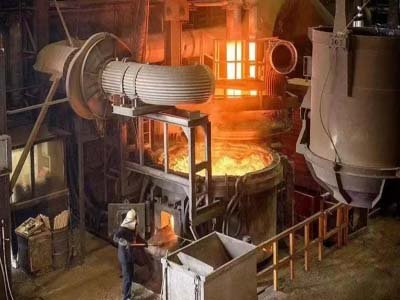

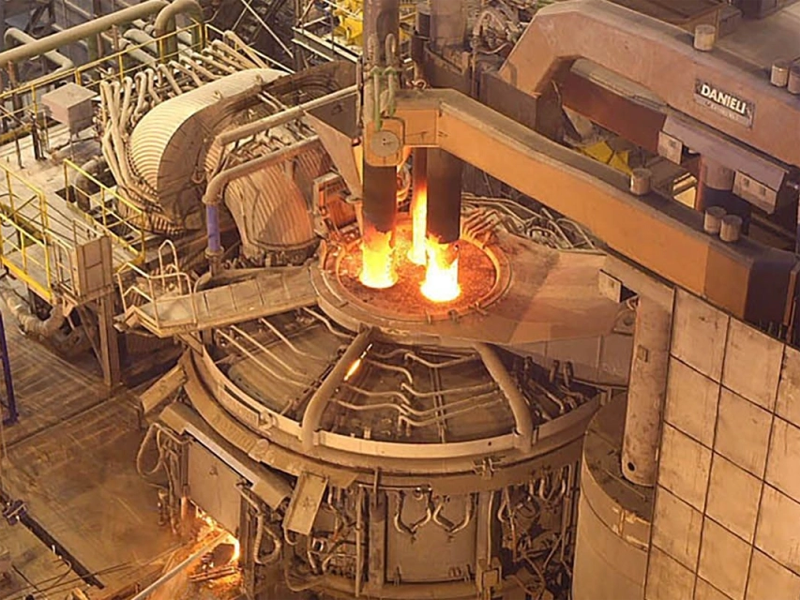

  • electric furnace

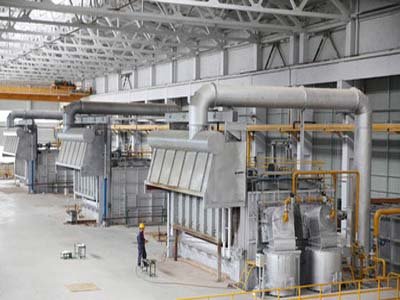

  • reverberatory furnace
  • glass furnace

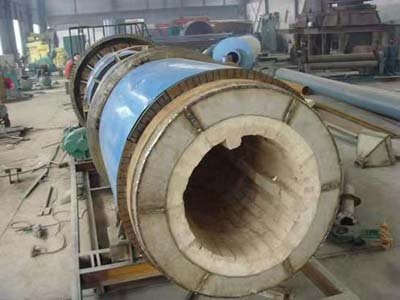

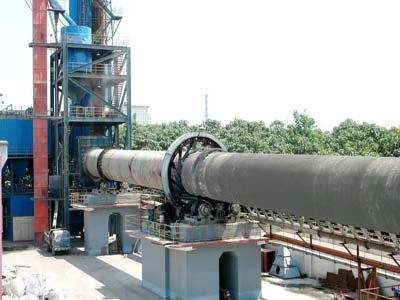

  • cement rotary kiln lining

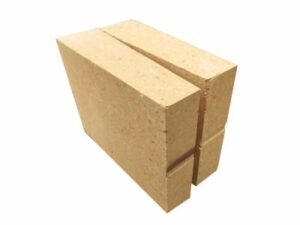

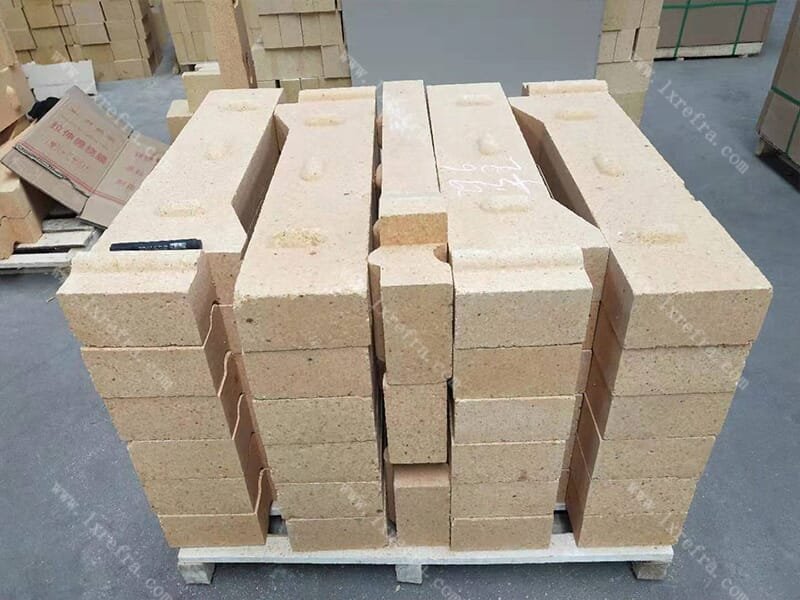

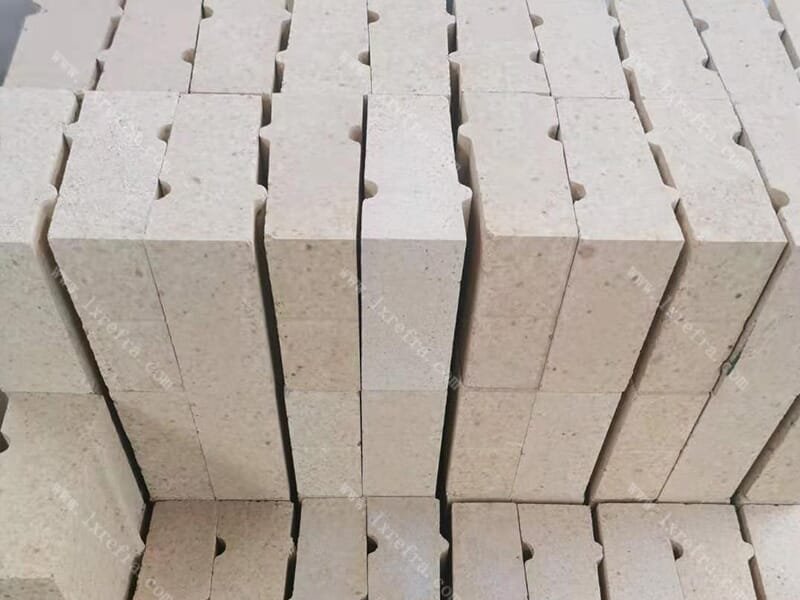

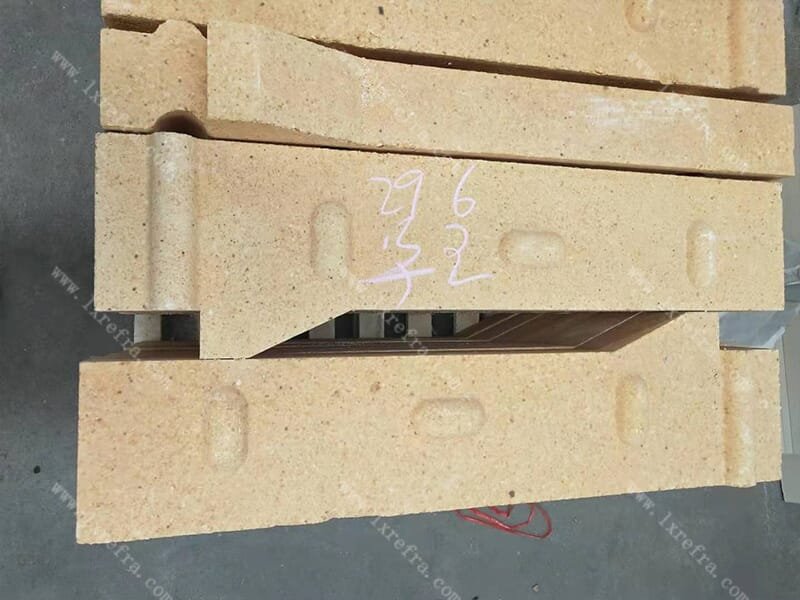

Anti-stripping High Alumina Brick

Features of Anti-stripping High Alumina Brick:

Anti-stripping high alumina brick is made of high grade bauxite clinker and synthetic material containing zirconia as raw materials.

  • high thermal shock stability;
  • alkali resistance;
  • wear resistance;
  • anti-crust
  • low thermal conductivity.

Application of Anti-stripping High Alumina Brick:

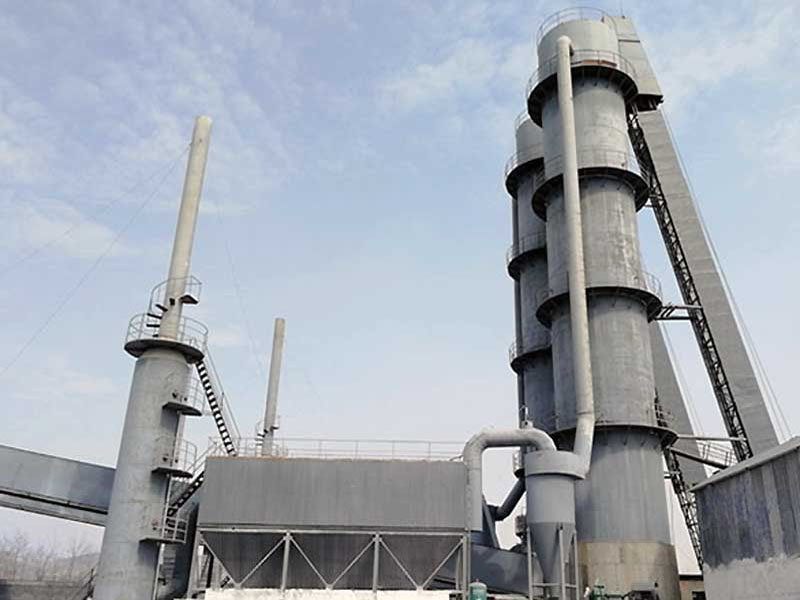

Anti-stripping high alumina bricks are widely used in new dry kiln, vertical kiln and wet kiln, including kiln door cover, rising flue, cooling belt, safety belt, transition belt, cooling machine back wall and side wall and vault.

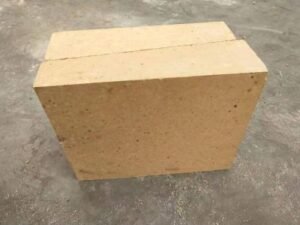

Anti-stripping High Alumina Brick

LX-YRS-70 LX-YRS-76
Physical Property:
Bulk Density(g/cm3) 2.55 2.50
Cold Crushing Strength(MPa) 45 55
Refractoriness UnderLoad(T0.6  ℃) 1470 1550
Thermal Conductivity(1000℃)(W/m.K) 1.4 1.4
Thermal Shock Resistance (1100℃,Water)(Cycles) 20 25
Thermal Expansion( 1000℃) (%) * 0.4-0.6 0.4-0.6
Refractoriness (℃) 1790 1790
Chemical Analysis(%)
Al2O3 70 76
Note:All data are average values obtained at samples for laboratory purposes.

What is the Price of High Alumina Bricks Price?

The main factors affecting the price include: quantity and type. High alumina bricks are key components for building kilns. Lianxin team will provide different pricing plans according to the different needs of customers. The price of high alumina bricks varies depending on the quantity and model selected. Customers who order large quantities of the same model can enjoy greater discounts.

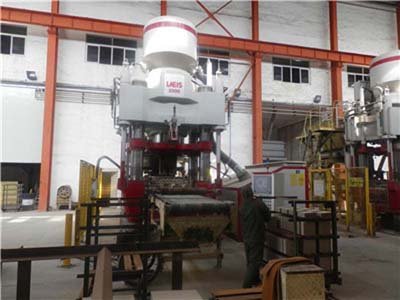

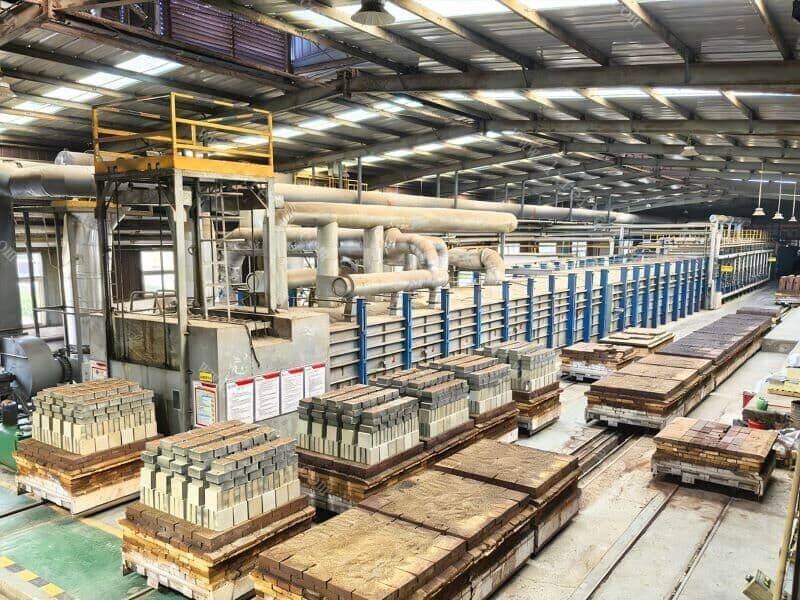

Manufacturing Process of Lianxin Refractory Brick

Manufacturing Process of Lianxin Refractory Brick
lianxin company

About Lianxin:

The company has more than 20 patented technologies, more than 20 corporate honors, and international certifications such as ISO. With an annual output of 300,000 tons, the company is a leader in China’s refractory industry. As a manufacturer, we will provide you with factory direct prices. With more than 20 years of experience and a team of more than 200 professionals, we are committed to helping you find a solution that suits your needs.

        Why Choose Us?

  • Free consultation and free quote
  • High quality and source factory price
  • Professional kiln design solution
  • Professional kiln construction experience and technical guidance
  • Fast delivery and after-sales maintenance
lianxingaowen

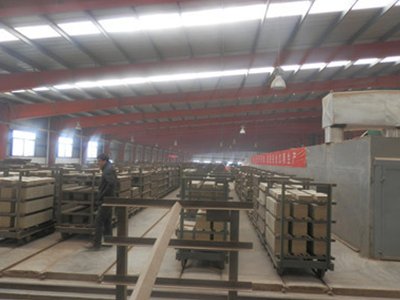

factory
lianxingaowen
lianxingaowen
factory
lianxin packaging
lianxin shipping
lianxingaowen

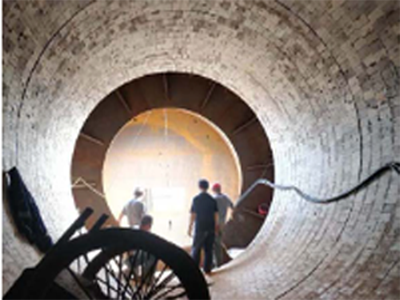

Customer Cases of Lianxin
